1000W 80mm High Low Temperature AC Servo Motor 3.2 Nm 3000 RPM

1000W 80mm High Low Temperature AC Servo Motor 3.2 Nm 3000 RPM

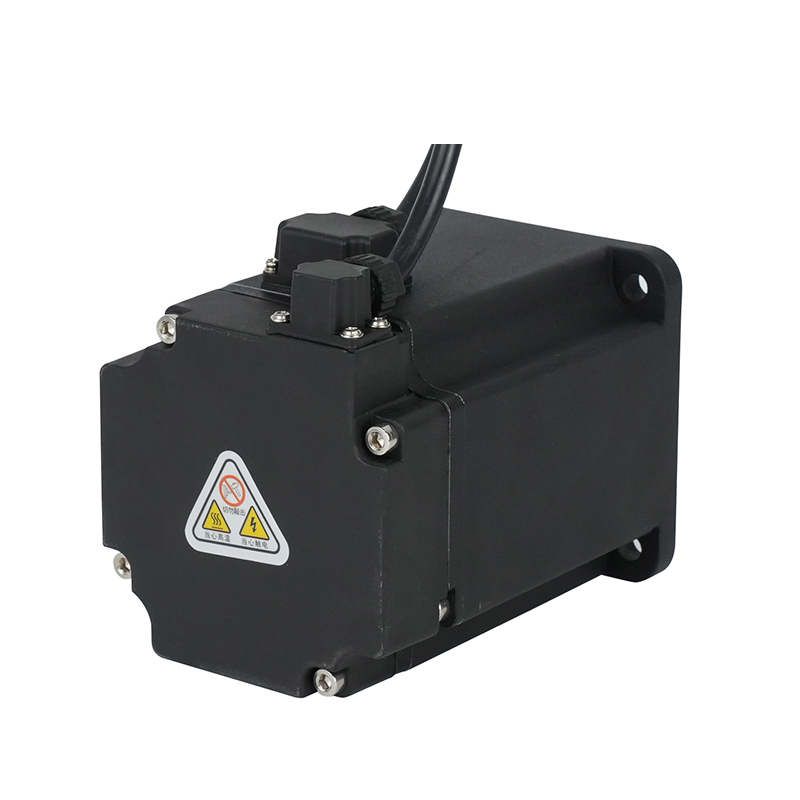

The HSK0810A-2R00 is a high-performance 1000W AC servo motor designed for versatility in both high and low-temperature environments. With a compact length of 80mm, this AC servo motor delivers a rated torque of 3.2Nm and operates at a voltage of 220VAC, making it suitable for various industrial applications. It features an impressive operating range from -40℃ to +85℃ and boasts an IP65 protection rating, ensuring reliable performance in challenging conditions.

Model :
HSK0810A-2R00
Rated voltage（VAC） :
220VAC
Rated torque（N.m） :
3.2Nm
Rated current（Arms） :
5.5A
weight（Kg） :
2.6kg
Frame Size :
80mm
Protection Class :
IP65
Ambient temperature :
NTL2
Rated Output Power :
1000W
Brake :
NO
Inertia, kg.m² :
2.03*10- 4
Rotor Poles :
5

Inquire Now

categories

how can we help you

You can contact us any way that is convenient for you. We are available 24/7 via email or telephone.

+View more

New Products

Description

1000W 80mm High Low Temperature AC Servo Motor 3.2 Nm 3000 RPM

The HSK0810A-2R00 high/low temperature AC servo motor provides a robust solution for demanding applications, offering a power output of 1000W and a compact design at just 80mm in length. This motor operates efficiently with a rated torque of 3.2Nm and an output current of 5.5A. Its advanced engineering allows for stable performance across a wide temperature range, from -40℃ to +85℃, making it ideal for environments where adaptability is crucial.

Featuring a high-precision brushless design, this 1000W servo motor not only enhances energy efficiency but also improves positioning accuracy and control performance, ensuring reliable operation. The IP65 protection rating further safeguards against dust and moisture, making the 3.2 Nm torque servo motor perfect for various industrial sectors, including robotics, automation, and aerospace. Its combination of compact size, powerful torque, and environmental resilience positions it as a top choice for applications requiring precise and stable power delivery.

1000W AC Servo Motor Advantages:

Wide Temperature Range: Operates efficiently from -40℃ to +85℃, making it suitable for extreme environments.
High Power Output: Delivers 1000W of power, providing robust performance for demanding applications.
Compact Design: With an 80mm length, it fits easily into tight spaces without sacrificing performance.
Strong Torque: Offers a rated torque of 3.2Nm, ensuring effective operation in various tasks.
IP65 Protection Rating: Safeguards against dust and moisture, enhancing durability in challenging conditions.
High Precision: Features a brushless design for improved positioning accuracy and control.

Environmental Class List:

Environmental Class List
Temperature Level	Symbol	Temperature Range (°C)	Maximum Allowable Temperature of Motor Casing (°C)	Vacuum Degree (Pa)
Wide Temperature	NTL2	-40 ~ +85	+115	/
Wide Temperature	NTL3	-60 ~ +85	+115	/
Vacuum High Temperature	VMT1	-20 ~ +200	+200	10⁻³
	VMT2	-20 ~ +150	+150	10⁻³
	VHT1	-20 ~ +200	+200	10⁻⁵
	VHT2	-20 ~ +160	+160	10⁻⁵
Cryogenic	VTL3	-60 ~ +100	+130	10⁻¹
	NTL4	-80 ~ +85	+115	/
	SLT	-196 ~ +40	+100	/

1000W Servo Motor Application：

The HSK0810A-2R00 high/low temperature AC servo motor is ideal for various industries. In biomedical applications, it ensures precise control for medical devices. In industrial automation, this 1000W AC servo motor enhances production line efficiency. It also supports drones with stable flight control. In the semiconductor industry, it aids in the delicate handling of materials. In the automobile industry, it powers robotic assembly lines for improved manufacturing. The motor provides accurate positioning in satellite detection and delivers precise movements for test instruments. Additionally, it excels in industrial robotics and maintains control in the chemical industry. Its reliability also makes it suitable for aerospace applications, ensuring performance in demanding conditions.

HSK0810A-2R00 Servo Motor Dimensions

Customized Service

We also offer fully customizable motor solutions to meet specific needs, including special requirements for radiation resistance, anti-fungal properties, impact resistance, and custom shaft designs. Our expert team is ready to work with you to create tailored solutions—contact us today to discuss your unique specifications!

Hot Tags : 1000W High Temperature Servo Motor Low Temperature AC Servo Motor 1000W 80mm High Performance Servo Motor 3.2 Nm Torque Servo Motor Industrial Grade 1000W AC Servo Motor
