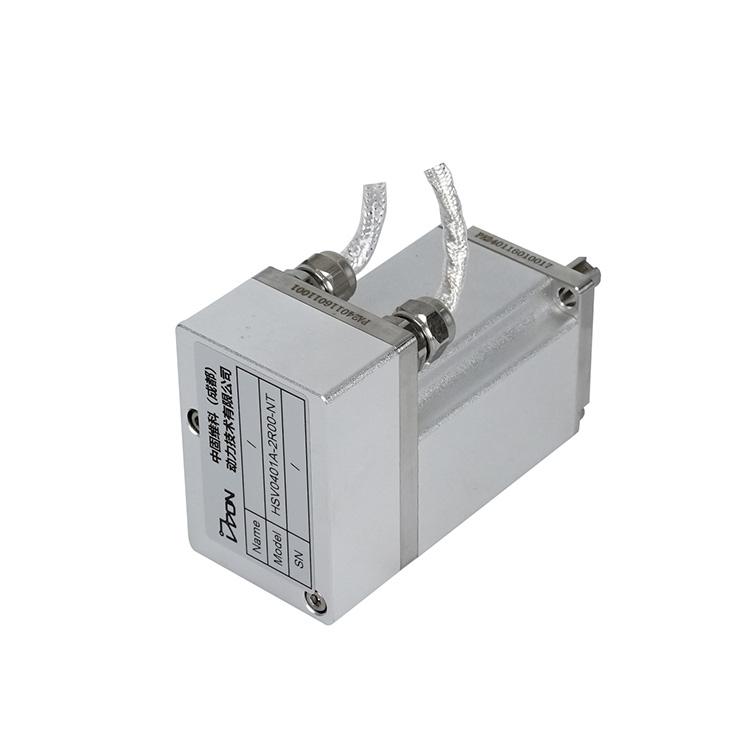

100W Cryogenic AC Servo Motor 40mm 0.32Nm 3000rpm

100W Cryogenic AC Servo Motor 40mm 0.32Nm 3000rpm

This HSV0401A-2R00 100W cryogenic AC servo motor features a compact 40mm size, 0.32Nm high torque, and 3000rpm high speed, ideal for efficient performance in extreme environments.

Model :
HSV0401A-2R00
Rated voltage（VAC） :
220VAC
Rated torque（N.m） :
0.32Nm
Rated current（Arms） :
1A
weight（Kg） :
0.8kg
Frame Size :
40mm
Protection Class :
IP54
Brake :
NO
Inertia, kg.m² :
0.06*10- 4
Rotor Poles :
5
Ambient temperature :
VTL3 / NTL4 / SLT
Rated Output Power :
100W

Inquire Now

categories

how can we help you

You can contact us any way that is convenient for you. We are available 24/7 via email or telephone.

+View more

New Products

Description

100W Cryogenic AC Servo Motor 40mm 0.32Nm 3000rpm

The 40mm Cryogenic Servo Motor (HSV0401A-2R00) offers several advantages: it provides 100W power output, ensuring stable operation at extreme low temperatures of -60°C; constructed with special materials and processes, it delivers exceptional performance in deep low-temperature environments; its IP54 protection rating effectively prevents dust and moisture ingress, making it ideal for applications requiring strict low-temperature stability and sealing performance.

40mm Cryogenic Servo Motor Application：

The 40mm Cryogenic Servo Motor (HSV0401A-2R00) is versatile and ideal for various applications, including biomedical systems, industrial automation, drones, the semiconductor industry, automotive manufacturing, satellite detection, testing instruments, industrial robotics, the chemical industry, and aerospace, ensuring reliable performance in extreme low-temperature environments.

Environmental Class List

Environmental Class List
Temperature Level	Symbol	Temperature Range (°C)	Maximum Allowable Temperature of Motor Casing (°C)	Vacuum Degree (Pa)
Wide Temperature	NTL2	-40 ~ +85	+115	/
Wide Temperature	NTL3	-60 ~ +85	+115	/
Vacuum High Temperature	VMT1	-20 ~ +200	+200	10⁻³
	VMT2	-20 ~ +150	+150	10⁻³
	VHT1	-20 ~ +200	+200	10⁻⁵
	VHT2	-20 ~ +160	+160	10⁻⁵
Cryogenic	VTL3	-60 ~ +100	+130	10⁻¹
	NTL4	-80 ~ +85	+115	/
	SLT	-196 ~ +40	+100	/

HSV0401A-2R00 40mm Cryogenic Servo Motor Dimensions

Customized Service

We also offer fully customizable motor solutions to meet specific needs, including special requirements for radiation resistance, anti-fungal properties, impact resistance, and custom shaft designs. Our expert team is ready to work with you to create tailored solutions—contact us today to discuss your unique specifications!
