The HSS0604A-2R00 cryogenic servo motor features a power output of 400W and a compact size of 60mm. It operates with a rated output voltage of 220VAC and delivers a rated torque of 1.27Nm, with a rated output current of 2.8A. Additionally, this motor offers a protection level of up to IP54, ensuring reliability in various environments.
Model :
HSS0604A-2R00Rated voltage（VAC） :
220VACRated torque（N.m） :
1.27NmRated current（Arms） :
2.8Aweight（Kg） :
2.1kgFrame Size :
60mmProtection Class :
IP54Brake :
NOInertia, kg.m² :
0.7*10- 4Rotor Poles :
5Ambient temperature :
VTL3 / NTL4 / SLTRated Output Power :
400W400W AC Servo Motor Cryogenic 60mm 1.27 Nm 3000 RPM
The HSS0604A-2R00 cryogenic servo motor utilizes specialized materials and processes to ensure optimal performance in extreme low-temperature conditions. This 60mm AC servo motor can start and operate normally even at temperatures as low as -60°C, effectively meeting the demands of cryogenic processes. Its excellent sealing performance protects against moisture, dust, and other contaminants, ensuring reliable operation in harsh environments. As a high-quality cryogenic AC servo motor, the HSS0604A-2R00 is designed to deliver precision and stability, making it an ideal choice for applications requiring dependable performance in deep low-temperature conditions.
Cryogenic Servo Motor Advantages:
Exceptional Performance in Low Temperatures: This cryogenic servo motor operates effectively at temperatures as low as -60°C, making it ideal for deep low-temperature applications.
Compact Design: The 60mm AC servo motor features a compact structure, allowing for easy integration into space-constrained systems without sacrificing performance.
High Torque Output: With a rated torque of 1.27Nm, this cryogenic AC servo motor provides reliable power for demanding applications across various industries.
Robust Sealing: The motor's excellent sealing performance prevents moisture and dust from entering, ensuring reliable operation in harsh environments.
Versatile Applications: The cryogenic servo motor is suitable for diverse fields, including biomedical, industrial automation, drones, and aerospace, demonstrating its flexibility and reliability.
Environmental Class List
| Environmental Class List | ||||
| Temperature Level | Symbol | Temperature Range (°C) | Maximum Allowable Temperature of Motor Casing (°C) | Vacuum Degree (Pa) |
| Wide Temperature | NTL2 | -40 ~ +85 | +115 | / |
| NTL3 | -60 ~ +85 | +115 | / | |
| Vacuum High Temperature | VMT1 | -20 ~ +200 | +200 | 10⁻³ |
| VMT2 | -20 ~ +150 | +150 | 10⁻³ | |
| VHT1 | -20 ~ +200 | +200 | 10⁻⁵ | |
| VHT2 | -20 ~ +160 | +160 | 10⁻⁵ | |
| Cryogenic | VTL3 | -60 ~ +100 | +130 | 10⁻¹ |
| NTL4 | -80 ~ +85 | +115 | / | |
| SLT | -196 ~ +40 | +100 | / | |
Cryogenic Motor Application：
The HSS0604A-2R00 cryogenic servo motor is engineered for a wide range of applications across various industries. In the biomedical field, this high-performance cryogenic AC servo motor ensures precise movements for medical devices, enhancing accuracy and safety. In industrial automation, the 60mm AC servo motor streamlines processes and significantly improves efficiency on production lines. For drones, the cryogenic servo motor reliable performance that contributes to stable flight control. In the semiconductor industry, this ac servo motor aids in the delicate handling of materials, ensuring high precision in production. The automobile industry benefits from the dependable power of this cryogenic AC servo motor for robotic assembly. Additionally, it enhances positioning accuracy in satellite detection applications and ensures precise measurements in test instruments. In industrial robotics, the motor supports agile movements, while in the chemical industry, it maintains control in complex processes. Lastly, the aerospace sector relies on the robust performance of the 400w cryogenic servo motor in demanding environments, making it an invaluable component across diverse applications.

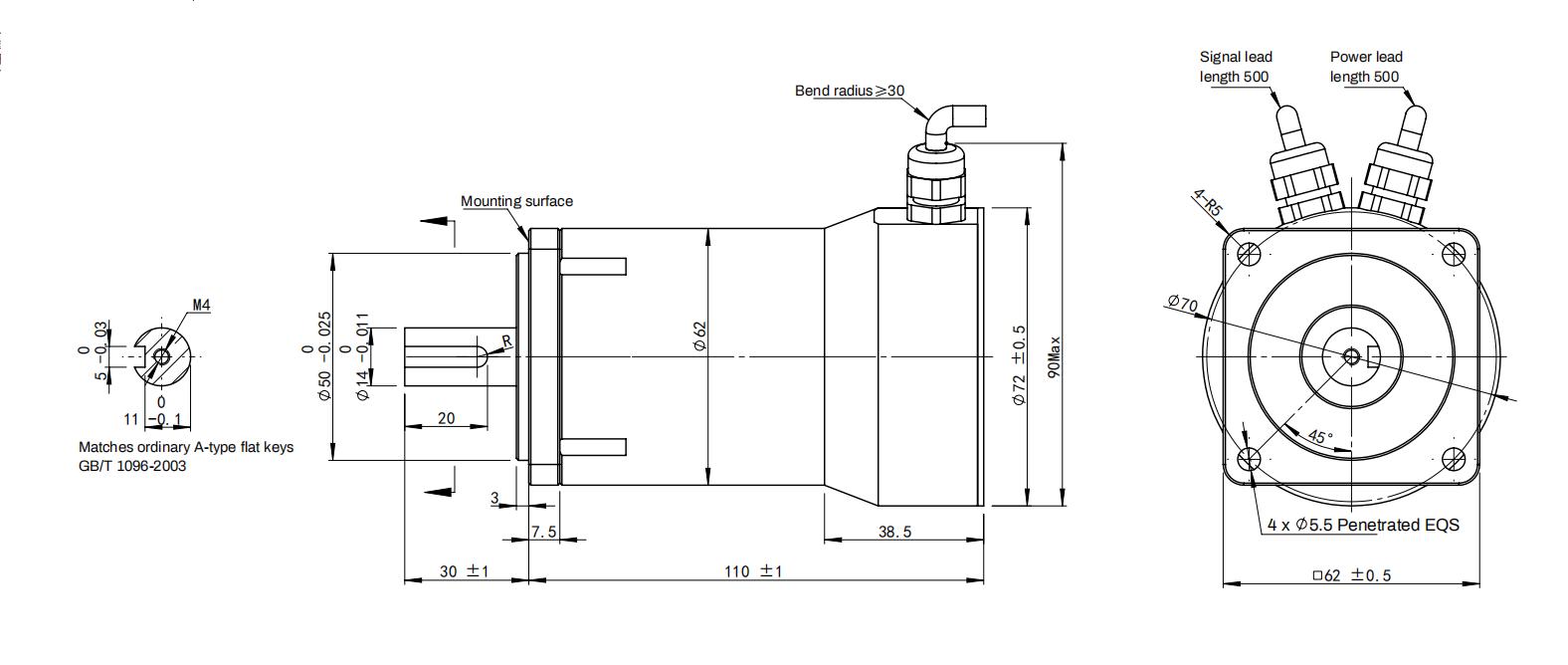

HSS0604A-2R00 Servo Motor Dimensions
