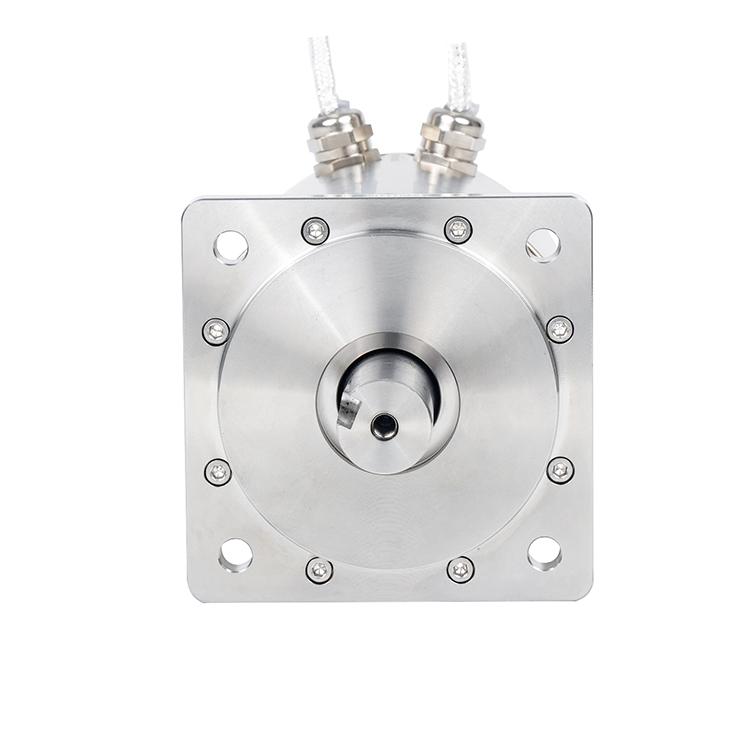

750W 80mm 2.4 Nm 3000 RPM High Temperature Vacuum AC Servo Motor

750W 80mm 2.4 Nm 3000 RPM High Temperature Vacuum AC Servo Motor

The HSS0807A-2R00 is a high-performance 750W AC servo motor designed for demanding applications in high temperature and vacuum environments. This servo motor is compact in size at only 80mm, has a torque output of 2.4Nm, and operates efficiently at a rated output voltage of 220VAC. Its rugged design has excellent resistance to heat, oxidation, and corrosion, making it suitable for extreme conditions. This high-temperature vacuum servo motor is IP54 rated to ensure reliable performance and durability.

Model :
HSS0807A-2R00
Rated voltage（VAC） :
220VAC
Rated torque（N.m） :
2.4Nm
Rated current（Arms） :
4A
weight（Kg） :
3.5kg
Frame Size :
80mm
Protection Class :
IP54
Brake :
NO
Inertia, kg.m² :
1.8*10- 4
Rotor Poles :
5
Ambient temperature :
VMT1 / VMT2 / VHT1 / VHT2
Rated Output Power :
750W

Inquire Now

categories

how can we help you

You can contact us any way that is convenient for you. We are available 24/7 via email or telephone.

+View more

New Products

Description

750W 80mm 2.4 Nm 3000 RPM High Temperature Vacuum AC Servo Motor

The HSS0807A-2R00 high-temperature vacuum AC servo motor delivers a powerful 750W output and is designed for flexible use in challenging environments. It is only 80mm long, operates at a rated output voltage of 220VAC, provides a rated torque of 2.4Nm, and an output current of 4A. This servo motor is particularly effective in high temperature conditions, maintaining stable operation at temperatures up to +200℃ and vacuum levels as low as 10-5pa.

Made of durable stainless steel, the high temperature vacuum AC servo motor has excellent heat resistance and maintains stable operation at temperatures up to +200°C and vacuum levels as low as 10-5 Pa. Its IP54 protection rating ensures effective protection against moisture and dust, making it a reliable choice for industrial applications. Ideal for use in environments that require high temperature and vacuum capabilities, this servomotor is well suited for industries such as aerospace, chemical processing, and advanced manufacturing.

Environmental Class List

Environmental Class List
Temperature Level	Symbol	Temperature Range (°C)	Maximum Allowable Temperature of Motor Casing (°C)	Vacuum Degree (Pa)
Wide Temperature	NTL2	-40 ~ +85	+115	/
Wide Temperature	NTL3	-60 ~ +85	+115	/
Vacuum High Temperature	VMT1	-20 ~ +200	+200	10⁻³
	VMT2	-20 ~ +150	+150	10⁻³
	VHT1	-20 ~ +200	+200	10⁻⁵
	VHT2	-20 ~ +160	+160	10⁻⁵
Cryogenic	VTL3	-60 ~ +100	+130	10⁻¹
	NTL4	-80 ~ +85	+115	/
	SLT	-196 ~ +40	+100	/

750W Vacuum Servo Motor Application：

1. Biomedical: Provides precise control in medical devices and equipment.

2. Industrial Automation: Enhances efficiency in automated manufacturing processes.

3. Drone: Ensures stable flight control for reliable drone operations.

4. Semiconductor Industry: Aids in the precise handling of materials during production.

5. Automobile Industry: Powers robotic assembly lines for improved manufacturing.

6. Satellite Detection: Improves positioning accuracy in satellite systems.

7. Test Instruments: Delivers precise movements for accurate measurements.

8. Industrial Robot: Supports agile and accurate movements in robotic applications.

9. Chemical Industry: Maintains control in complex processes requiring precision.

10. Aerospace: Operates reliably in extreme high-temperature and vacuum conditions.

HSS0807A-2R00 Servo Motor Dimensions

Customized Service

We also offer fully customizable motor solutions to meet specific needs, including special requirements for radiation resistance, anti-fungal properties, impact resistance, and custom shaft designs. Our expert team is ready to work with you to create tailored solutions—contact us today to discuss your unique specifications!
