Rotary transformer decoder, also known as a rotary encoder, typically consists of a rotary converter, a decoder, and a control circuit. The rotary converter converts mechanical rotation into electrical signals, the decoder converts electrical signals into digital signals, and the control circuit is used to control the operation of the decoder.
Communication output :
RS485, CANPower supply :
12/24VDCOperating temperature :
-40℃ ~ +85℃Simulation incremental encoder output :

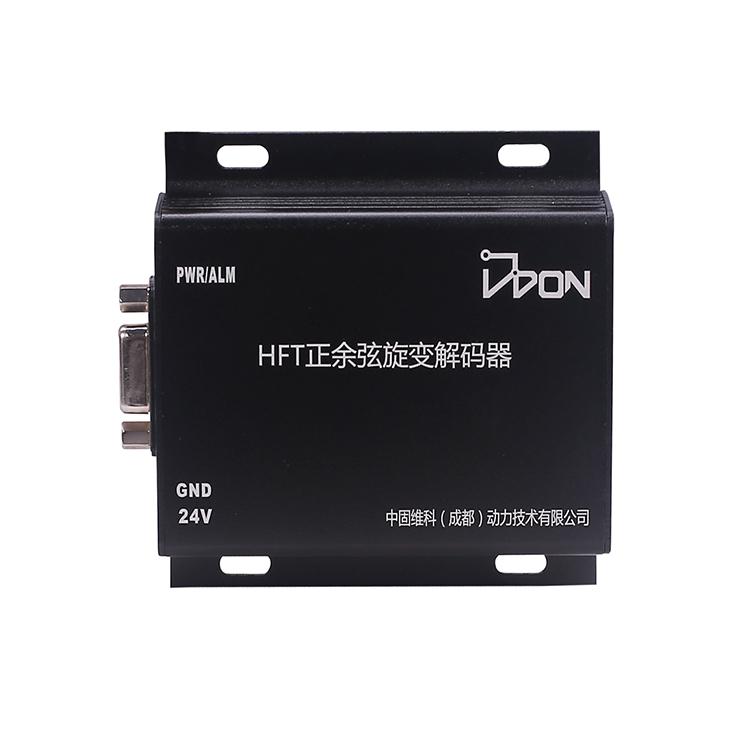

A+, A-, B+, B-, Z+, Z-HFT Rotary Transformer Decoder Board ABZ Signal Wide Temperature Range -40 to +85℃
| Excitation voltage | 5V~7V | 6V |
| Excitation frequency | 2K~20K | 10K |
| Excitation current | 200mA | |
| Applicable transformation ratio | 0.2~2.0 | Default 0.5 |
| Resolution | 10, 12, 14, 16 bits | |
| output signal | ABZ Single-ended/differential | RS485 |
| Supply voltage | 12、24V |
Application:
Rotary transformer decoder are widely used in various automation control fields, such as medical equipment, automated production lines, mechanical processing, and other industries. More accurate and reliable measurement and control of rotation angle can be achieved through the use of a rotary encoder decoder.
In addition, theRotary transformer decoder can also be combined with other sensors, such as linear sensors, to achieve motion trajectory control of the robot; Combined with acceleration sensors and gyroscopes, it can achieve functions such as 3D pose estimation, etc
PRODUCT MODEL：
| Product Series | Resolution | Encoder output mode | communication | Environment and temperature |
| HFT Rotary transformer decoder |
10bit | S：Single-ended | 485 | I:-40~+85℃ |
| 12bit | ||||
| 14bit | D：differential | |||
| 16bit |
