HS86118W cryogenic stepper motor combines a 1.8° step angle and 5.5N.m holding torque with an IP54 rating. Its advanced design ensures reliable performance in temperatures as low as -196°C, making it ideal for demanding applications in extreme environments.
Model :
HS86118WRated current（Arms） :
5AFrame Size :
86mmLength :
118mmStep angle (°) :
1.8Holding Torque (N.m) :
5.5NmWeight（kg） :
4.6kgProtection Class :
IP54Nema 34 86*118mm 5.5N.m Cryogenic Stepper Motor
| Radial clearance | 0.02mm Max（ Load capacity: 450g） |
| Axial clearance | 0.08mm Max（Load capacity: 450g） |
| Resistance Accuracy | ±10% |
| Inductance Accuracy | ±20% |
| Insulation resistance | 100MΩ |
| Insulation class | Level B |
| Insulation strength | 500VAC 50Hz 1mA 1Minute |
| Motor temperature rise | 80°C Max（ Rated current、STP） |
| Ambient temperature |
NTL3 / NTL4 |
| Radial load | 220N Max(20mm from the flange face) |
| Axial load | 60N Max |
Nema 34 86*118mm 5.5N.m Cryogenic Stepper Motor Description
The HS86118W Nema 34 cryogenic stepper motor features a precise step angle of 1.8 degrees, compact dimensions of 86mm in diameter and 118mm in length, and operates with a rated current of 5A. It delivers a robust holding torque of 5.5N.m and has a protection level of up to IP54, making it suitable for various applications.
Through advanced technological development, including careful material selection and structural optimization, the HS86118W Nema 34 cryogenic stepper motor has effectively addressed low-temperature adaptability challenges. It can operate reliably in conditions as low as -196°C, significantly enhancing the motor's lifespan and performance in extreme environments.
Application：
Biomedical, Industrial Automation, Drone, Semiconductor Industry, Automobile Industry, Satellite Detection, Test Instruments, Industrial Robot, Chemical Industry, Aerospace.
Environmental Class List
| Environmental Class List | ||||
| Temperature Level | Symbol | Temperature Range (°C) | Maximum Allowable Temperature of Motor Casing (°C) | Vacuum Degree (Pa) |
| Wide Temperature | NTL2 | -40 ~ +85 | +115 | / |
| NTL3 | -60 ~ +85 | +115 | / | |
| Vacuum High Temperature | VMT1 | -20 ~ +200 | +200 | 10⁻³ |
| VMT2 | -20 ~ +150 | +150 | 10⁻³ | |
| VHT1 | -20 ~ +200 | +200 | 10⁻⁵ | |
| VHT2 | -20 ~ +160 | +160 | 10⁻⁵ | |
| Cryogenic | VTL3 | -60 ~ +100 | +130 | 10⁻¹ |
| NTL4 | -80 ~ +85 | +115 | / | |
| SLT | -196 ~ +40 | +100 | / | |

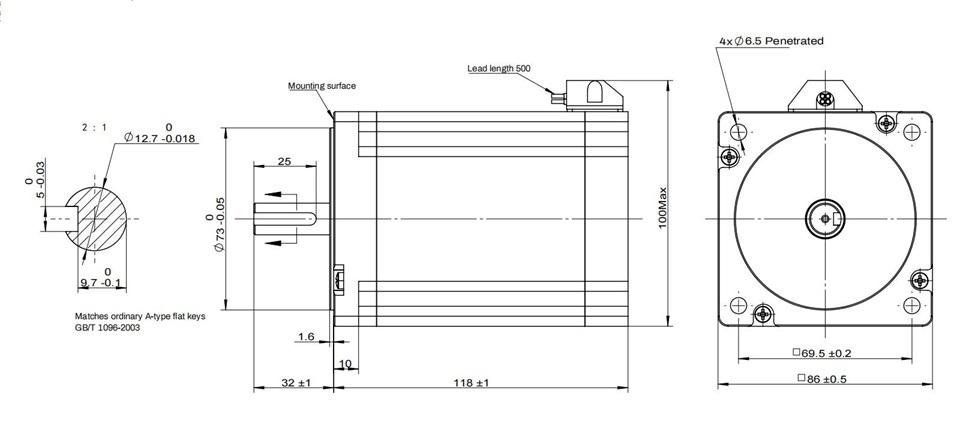

HS86118W Stepper Motor Dimensions
HS86118W Stepper Motor Torque Curves
