HK86118W stepper motor delivers high precision with a 1.8° step angle, robust 5.5N.m torque, and an IP65 rating. It operates in extreme temperatures from -60°C to +85°C, ensuring reliable performance in harsh environments while minimizing noise and vibration.
Model :
HK86118WRated current（Arms） :
5AFrame Size :
86mmLength :
118mmStep angle (°) :
1.8Holding Torque (N.m) :
5.5NmWeight（kg） :
4.2kgProtection Class :
IP65Nema 34 86*118mm 5.5N.m Wide Temperature Stepper Motor
| Radial clearance | 0.02mm Max（ Load capacity: 450g） |
| Axial clearance | 0.08mm Max（Load capacity: 450g） |
| Resistance Accuracy | ±10% |
| Inductance Accuracy | ±20% |
| Insulation resistance | 100MΩ |
| Insulation class | Level B |
| Insulation strength | 500VAC 50Hz 1mA 1Minute |
| Motor temperature rise | 80°C Max（ Rated current、STP） |
| Ambient temperature |
NTL2 / NTL3 |
| Radial load | 220 Max(20mm from the flange face) |
| Axial load | 60N Max |
Nema 34 86*118mm 5.5N.m Wide Temperature Stepper Motor Description
HK86118W Nema 34 wide temperature stepper motor features a precise step angle of 1.8 degrees and dimensions of 86mm in diameter and 118mm in length. It operates with a rated current of 5A and provides a robust holding torque of 5.5N.m. With an IP65 protection rating, this motor is designed to withstand dust and moisture, making it suitable for demanding environments.
Engineered with advanced thermodynamic design, the HK86118W Nema 34 wide temperature stepper motor is capable of functioning in extreme temperature ranges from -60°C to +85°C. This wide operating range ensures that the motor can meet the rigorous demands of various applications in harsh conditions.
The motor is equipped with magnets made from specially formulated materials that offer exceptional temperature and weather resistance. This ensures consistent performance even in high-temperature environments. Additionally, through cutting-edge technological optimizations, the HK86118W Nema 34 wide temperature stepper motor minimizes noise and vibration, enhancing the overall efficiency and lifespan of the equipment.
Application：
Biomedical, Industrial Automation, Drone, Semiconductor Industry, Automobile Industry, Satellite Detection, Test Instruments, Industrial Robot, Chemical Industry, Aerospace.
Environmental Class List
| Environmental Class List | ||||
| Temperature Level | Symbol | Temperature Range (°C) | Maximum Allowable Temperature of Motor Casing (°C) | Vacuum Degree (Pa) |
| Wide Temperature | NTL2 | -40 ~ +85 | +115 | / |
| NTL3 | -60 ~ +85 | +115 | / | |
| Vacuum High Temperature | VMT1 | -20 ~ +200 | +200 | 10⁻³ |
| VMT2 | -20 ~ +150 | +150 | 10⁻³ | |
| VHT1 | -20 ~ +200 | +200 | 10⁻⁵ | |
| VHT2 | -20 ~ +160 | +160 | 10⁻⁵ | |
| Cryogenic | VTL3 | -60 ~ +100 | +130 | 10⁻¹ |
| NTL4 | -80 ~ +85 | +115 | / | |
| SLT | -196 ~ +40 | +100 | / | |

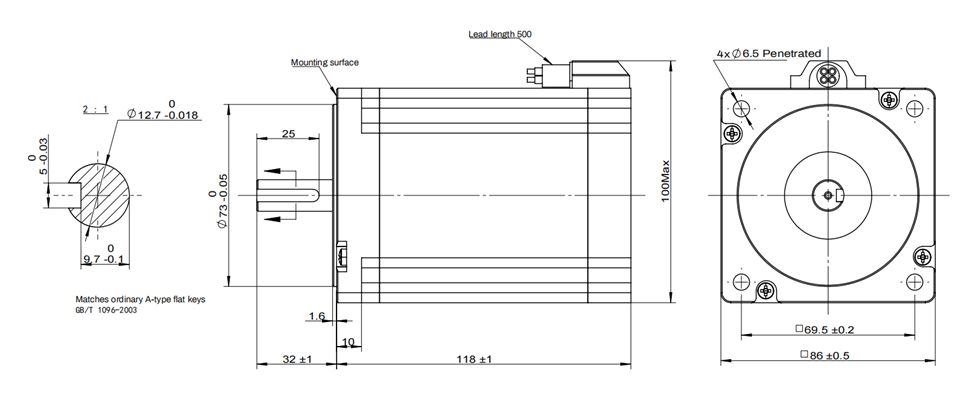

HK86118W Stepper Motor Dimensions
HK86118W Stepper Motor Torque Curves
