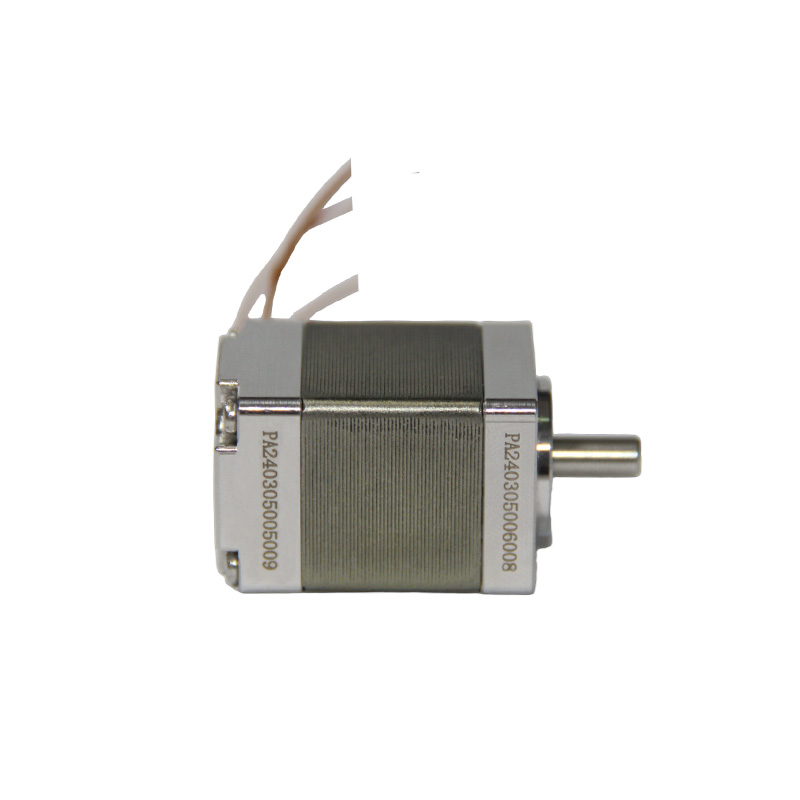

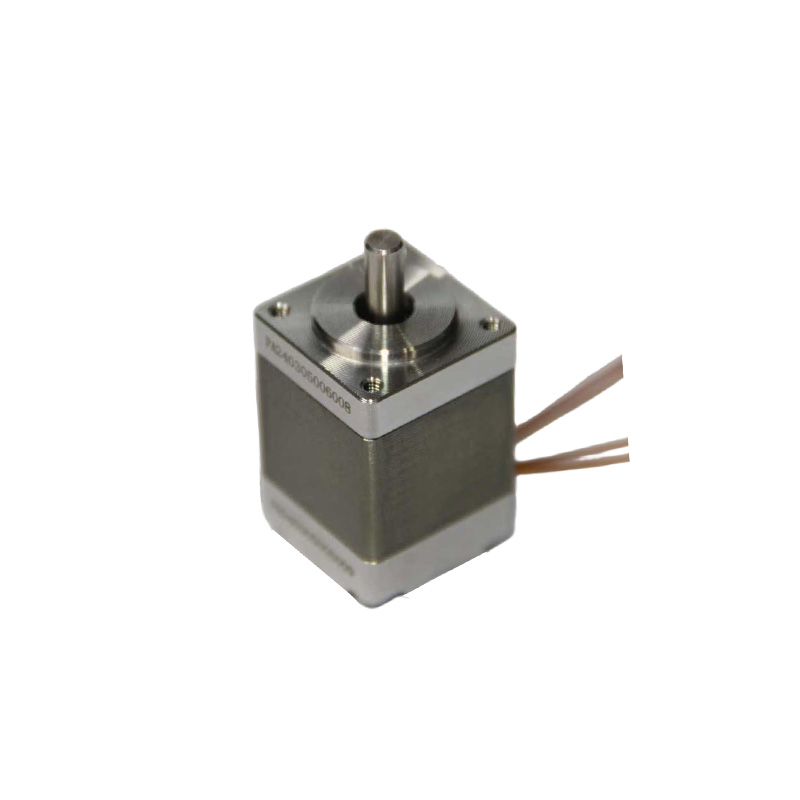

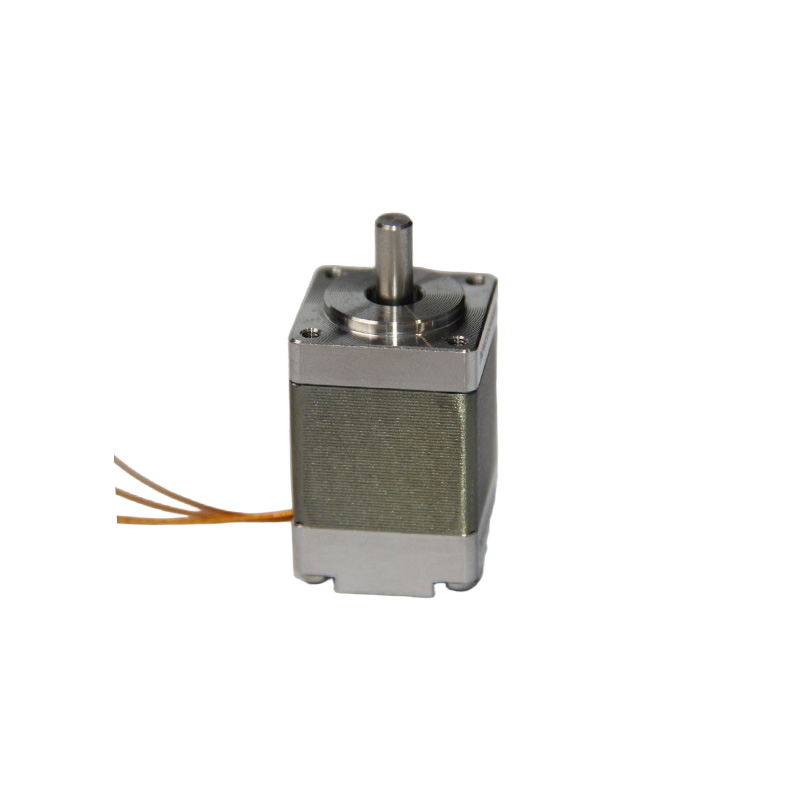

This HS2030A Nema 8 stepper motor features high-temperature and vacuum capabilities, measuring 20x30mm with a torque of 0.013Nm, making it ideal for use in extreme environments.
Model :
HS2030ARated current（Arms） :
0.57AFrame Size :
20mmLength :
30mmStep angle (°) :
1.8Holding Torque (N.m) :
0.01NmWeight（kg） :
0.08kgProtection Class :
IP20NEMA size :
Nema 08Nema 8 Stepper Motor Vacuum High Temperature 20x30mm 0.013Nm
| Radial clearance | 0.02mm Max（ Load capacity: 450g） |
| Axial clearance | 0.08mm Max（Load capacity: 450g） |
| Resistance Accuracy | ±10% |
| Inductance Accuracy | ±20% |
| Insulation resistance | 100MΩ |
| Insulation class | Level B |
| Insulation strength | 500VAC 50Hz 1mA 1Minute |
| Motor temperature rise | 80°C Max（ Rated current、ＳＴＰ） |
| Ambient temperature | VMT1 / VHT1 / VMT2 / VHT2 |
| Radial load | 2N Max(20mm from the flange face) |
| Axial load | 5N Max |
HS2030A High Temperature Vacuum Stepper Motor Features
New Design: Utilizes special materials for reliable performance.
Temperature Range: Operates from -20°C to +200°C.
Vacuum Level: Better than 10^-5 Pa.
Standard Sizes: Available in 20mm, 28mm, 42mm, 57mm, and 86mm frame sizes.
Two-Phase Four-Wire Hybrid Motor: Suitable for various applications.
Custom Specifications: Other sizes can be provided based on requirements.
Special Requirement Customization: Can accommodate radiation, mold resistance, impact resistance, and various shaft output forms.
Application：
The HS2030A high-temperature vacuum stepper motor is designed for a wide range of applications, including biomedical devices, industrial automation, drones, the semiconductor industry, the automobile sector, satellite detection, test instruments, industrial robots, the chemical industry, and aerospace. Its robust performance in extreme conditions makes it ideal for demanding environments across these diverse fields.
Environmental Class List
| Environmental Class List | ||||
| Temperature Level | Symbol | Temperature Range (°C) | Maximum Allowable Temperature of Motor Casing (°C) | Vacuum Degree (Pa) |
| Wide Temperature | NTL2 | -40 ~ +85 | +115 | / |
| NTL3 | -60 ~ +85 | +115 | / | |
| Vacuum High Temperature | VMT1 | -20 ~ +200 | +200 | 10⁻³ |
| VMT2 | -20 ~ +150 | +150 | 10⁻³ | |
| VHT1 | -20 ~ +200 | +200 | 10⁻⁵ | |
| VHT2 | -20 ~ +160 | +160 | 10⁻⁵ | |
| Cryogenic | VTL3 | -60 ~ +100 | +130 | 10⁻¹ |
| NTL4 | -80 ~ +85 | +115 | / | |
| SLT | -196 ~ +40 | +100 | / | |
HS2030A Vacuum Temperature Stepper Motor Dimensions

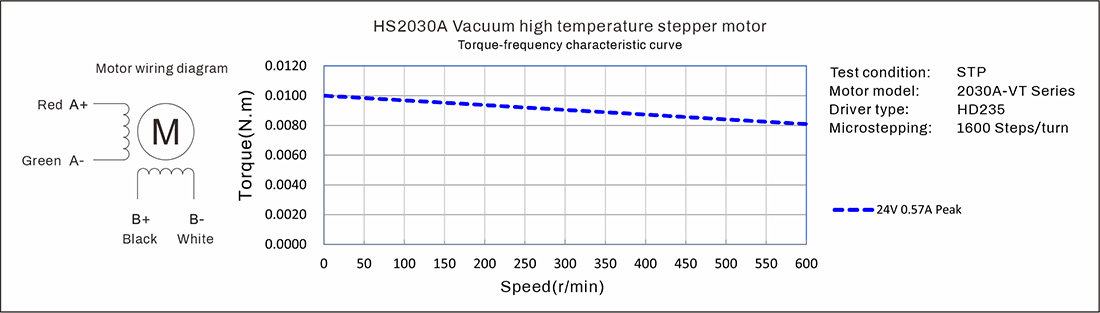

HS2030A Vacuum Temperature Stepper Motor Torque Curves
